Display Seals
Panacol liquid seals are used especially for simultaneous bonding and sealing of displays and touchscreens. Form-in-place gasket (FIPG) and cured-in-place gasket (CIPG) adhesives are fast-curing and protect displays from external influences such as air humidity, dust and cleaning agents.
The table below lists a selection of adhesives from Panacol that are suitable for bonding and sealing. Further products and custom solutions are available on request.

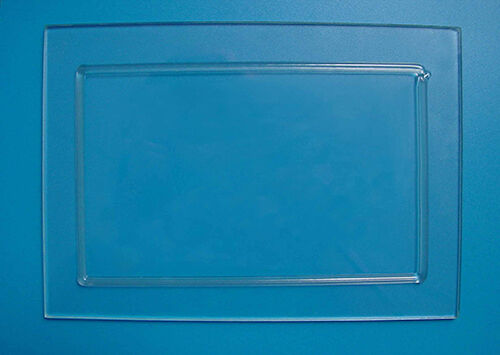

Panacol's liquid seals are the perfect solution for sealing displays
To download the technical datasheets (TDS) please click on the adhesive name.
| Adhesive | Viscosity [mPas] | Base | Curing* | Properties |
|---|---|---|---|---|
| Vitralit® 4641 | 1,000-2,500 | acrylate |
UV VIS |
Fast curing elastic flexible high resilience |
| Vitralit® 4732 VT | 7,000-9,000 | acrylate |
UV VIS |
Very high adhesion to many plastics dry surface after curing flexible and tear-proof |
| Vitralit® 5140 VT | 5,000-10,000 (Rheometer, 25°C, 10s^-1) | acrylate |
UV VIS |
High resistance to thermal stress and moisture flexible and stable |
| Vitralit® FIPG 60102 | 100,000-250,000 (Rheometer, 25°C, 10s^-1); 15,000-40,000 (Rheometer, 25°C, 1s^-1) | acrylate |
UV VIS |
Flexible/elastic liquid gasket, high resilience, easy to apply, fast curing with UV light |
| Vitralit® VBB 1 Gel | 12,000-30,000 | acrylate |
UV VIS |
Elastic high peel strength optically clear very flexible stable gel |
*UV = 320 - 239 nm VIS = 405 nm
