Die Attach: Electrically Conductive Adhesives

Conductive adhesives are the perfect solution for mounting temperature-sensitive chips on smart cards, as their curing temperatures lie clearly below soldering temperature. In addition these adhesives are much more flexible than solder and are therefore better able to withstand bending of the smart card. A further advantage over soldering is that conductive adhesives are lead- and solvent-free.

With its Elecolit^® range Panacol offers a broad spectrum of electrically conductive adhesives suitable for die attach applications. The adhesives are one-component adhesives and can be simply applied with dispensers. Curing is either thermal at 120 to 150°C or through exposure to UV light.

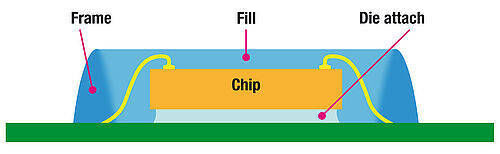

Electrically conductive adhesives are the perfect choice to mount chips and dies

Downloads:

Elecolit^®
Electrically and thermally conductive adhesives

Smart Card Manufacturing
Adhesives for applications on smart cards

The table below lists a selection of sealing and mould-like compounds from Panacol. Further products and custom solutions are available on request.

To download the technical datasheets (TDS) please click on the adhesive name.

Conductive adhesive	Application	Viscosity [mPas]	Base	Curing*	Properties
Elecolit® 3063	LCD bonding bonding flexible conductors	12,000-30,000 (Rheometer, 25 °C, 10s^-1); 150,000-190,000 (LVT. 25 °C, Sp.7/5 rpm)	acrylate	UV + pressure VIS + pressure	electrically conductive (ACA)
Elecolit® 3064	LCD bonding bonding flexible conductors	150,000-190,000 (LVT, 25 °C, Sp. 7/5 rpm); 12,000-30,000 (Rheometer, 25 °C, 10s^-1)	acrylate	UV + pressure VIS + pressure	electrically conductive (ACA)
Elecolit® 3065	bonding flexible circuits display and touchscreen sealing	25,000-45,000 (Rheometer 10s^-1)	acrylate	UV + pressure VIS + pressure thermal postcuring	Electrically conductive (ACA) Transparent brownish color High flexibility Very high adhesion to PET, Kapton and Mylar
Elecolit® 327	bonding electroconductive parts	paste-like	polyimid	thermal	electrically conductive (ICA) thermally conductive high temperature resistant up to 275°C
Elecolit® 3653	bonding electroconductive parts ideal for parts subjected to high vibrations	4,000-8,000	epoxy	thermal	electrically conductive (ICA) thermally conductive
Elecolit® 3655	LED die attach	5,000-15,000 (Rheometer 10s^-1)	epoxy	thermal	electrically conductive (ICA) thermally conductive, thixotropic, silver color, low ion content (Na+, K+, Cl- <10ppm)
Elecolit® 3661	bonding flexible interconnect devices	20,000-40,000	epoxy	thermal	electrically conductive (ICA) thermally conductive stable flexible

*UV = 320 - 390 nm VIS = 405 nm
